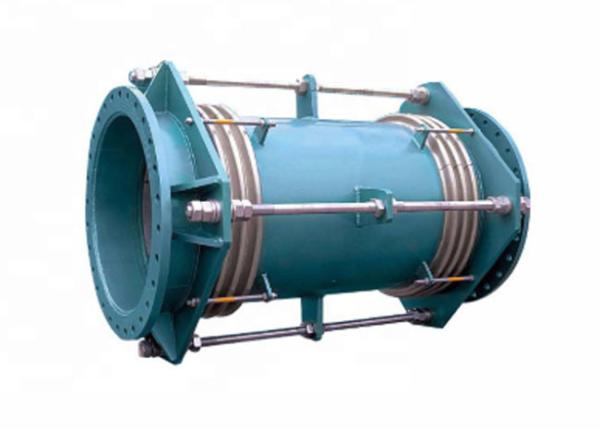

Axial Movement Metallic Bellows Expasnion Compensator Joint
Application:
It is made of SUS304 material, multiply bellows with features of lower elasticity coefficient, high-temperature and high-pressure resisiting, applied to absorb the expansion or copression of the HTM fluid pipeline. It can make a long service life in piping system.
Construction:
| Item |
Parts |
Material |
Remark |
| 1 |
Bellows |
SUS304 |
SUS316/321 |
| 2 |
Flanges |
SS400 |
SUS304/316/321 |
| 3 |
Tube Ends |
SS400 |
SUS304/316/321 |
| 4 |
Internal Sleeve |
SUS304 |
SUS316/321 |
| 5 |
Tie Rods |
SS400 |
SUS304 |
Specification:
| Nominal Bore |
Total Length |
BELLOWS O.D. |
Force to Compress |
Effective Area |
Axial Movement |
Working Pressure |
| mm |
ins |
mm |
mm |
kg |
cm2 |
mm |
kg/cm2 |
| 40 |
1 1/2 |
350 |
58 |
75 |
17.6 |
+10 -40 |
16 |
| 50 |
2 |
350 |
76 |
110 |
30.4 |
+10 -40 |
16 |
| 65 |
2 1/2 |
350 |
92 |
205 |
43.8 |
+10 -40 |
16 |
| 80 |
3 |
350 |
106 |
261 |
62.8 |
+10 -40 |
16 |
| 100 |
4 |
350 |
133 |
303 |
107.7 |
+10 -40 |
16 |
| 125 |
5 |
350 |
163 |
630 |
162.9 |
+10 -40 |
16 |
| 150 |
6 |
350 |
190 |
1154 |
227.5 |
+10 -40 |
16 |
| 200 |
8 |
350 |
252 |
1905 |
385.3 |
+10 -40 |
16 |
| 250 |
10 |
350 |
315 |
1932 |
670.1 |
+10 -40 |
16 |
| 300 |
12 |
350 |
366 |
2353 |
923.5 |
+10 -40 |
16 |
| 350 |
14 |
400 |
398.1 |
2192 |
1102 |
+10 -40 |
16 |
| 400 |
16 |
400 |
462.8 |
2689 |
1464 |
+10 -40 |
16 |
| 500 |
20 |
450 |
564 |
3322 |
2235 |
+10 -40 |
16 |
| 600 |
24 |
500 |
666 |
3956 |
3167 |
+10 -40 |
16 |
*Specifications stated abvoe are the standard. We can design and manufacture according to customer's requirement
*Flange Standard: JIS, ANSI, DIN, B.S. JB etc
Features:
1. Excellent Welding Technology, like a fish swimming in water.
2. More flexible and longer service life.
